Round Flush Mount, universal 120V-347V, 0-10V dimming (CFLEDR10-CC-V-WH)

Image may not reflect selected features

No Image
Available

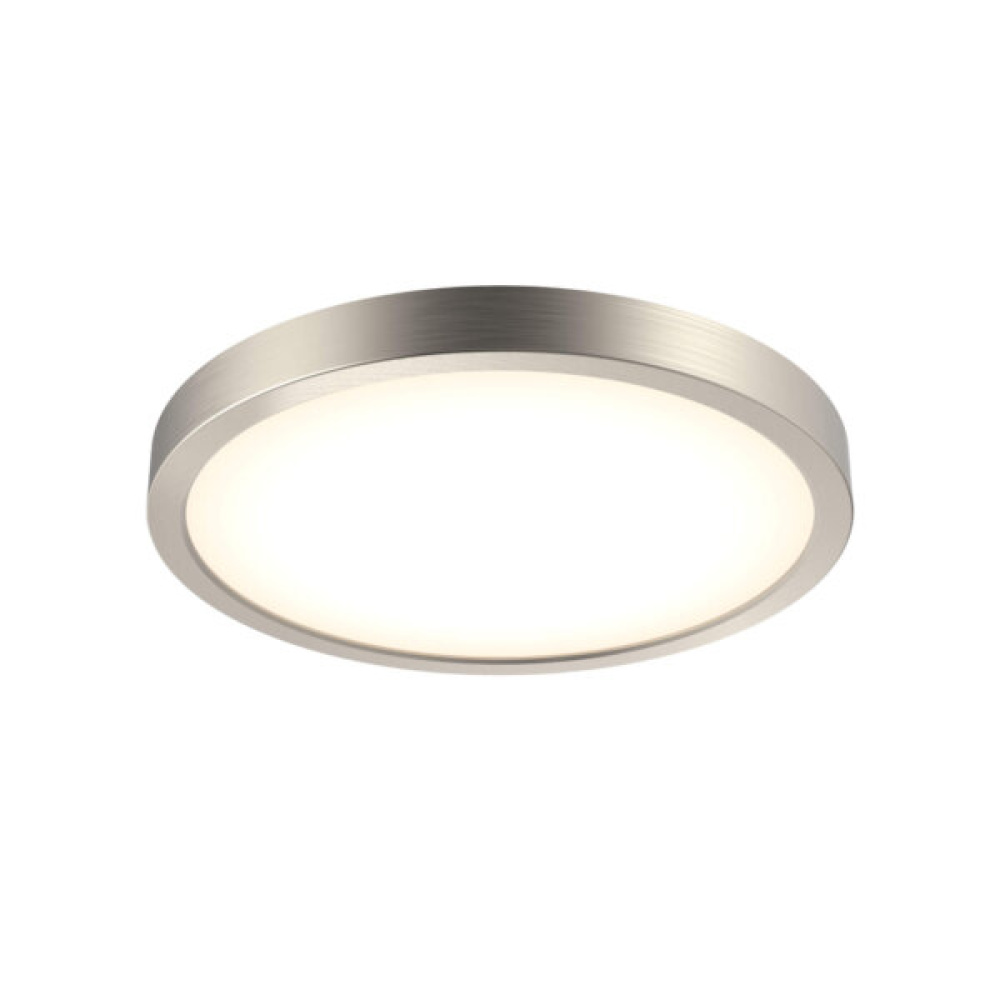

Round Flush Mount, universal 120V-347V, 0-10V dimming

BASE PRICE:

122

/ / 1

($122.00 / 1)

WAS

Call for Price

Item #:

CFLEDR10-CC-V-WH

Dimensions:

Height: 1.00"

Width: 10.00"

Length: 10.00"

Finish:

Changes Other Selections...

Delivered Lumens:

Changes Other Selections...

Availability:

Special Order: 134 available. Lead time varies

Description

Details

Downloads

Our LED flush mounts incorporate Edge-Lit technology, eliminating hot spots or glare. Can be installed inside or outside and offer 5 switch-selectable CCT settings – 2700 K, 3000 K, 3500 K, 4000 K, and 5000 K

Finish:

White

Option:

Title 24 , Outdoor , Wet Rated , Prop 65

Category:

Ceiling

Subcategory:

Flushmount

Finish:

White

Option:

Outdoor , Prop 65 , Title 24

Family:

Delta

Voltage:

120 V/ 277 V/ 347 V

Number of Bulbs:

1 Bulbs

Bulb Hours:

50000

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

2.25

Ship Carton Length:

11.25

Ship Carton Width:

11.75

Ship Weight:

2.6

Warranty:

5 Years Limited

Beam Angle:

110

Bulb CRI:

Country of Origin:

China

Delivered Lumens:

1499

Dimmer Type:

0-10V

Indoor:

Yes

IP Rating:

IP44

Lens Material:

Location Rating:

Wet Rated

Max Wattage:

17 W

Maximum Working Temperature:

40°C

Minimum Working Temperature:

-20°C

Outdoor:

Yes

Prop 65:

Yes

Safety Rating:

ETL Approved

Shipping Master Height:

12.25

Shipping Master Length:

12.25

Shipping Master Quantity:

Shipping Master Weight:

Shipping Master Width:

22.5

Title 24:

Yes

Wiring:

Hardwired

Additional Information:

Frosted lens
Integrated dimmable driver
Over 50,000 hours of service life
Smooth 360° wide spread
Suitable for outdoor locations on covered ceilings only
